ltemNO. |
Nominal
Size |
Working
LoadLimit |

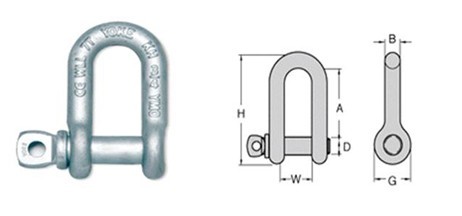

Dimensions(inch) |
N.W. |
|
inch |
tonnes* |
W |
D |
A |
B |
G |
H |
Lbs |
|
8-804-08 |
5/16 |
1.2 |
13 |
9.5 |
31 |
8 |
19 |
52 |
0.1 |
|
8-804-10 |
3/8 |
2 |
16 |
11 |
36 |
10 |
23 |
63 |
0.1 |
|
8-804-11 |
7/16 |
2.6 |
19 |
13 |
43 |
11 |
27 |
74 |
0.2 |
|
8-804-13 |
1/2 |
3.4 |
20 |
16 |
47 |
13 |
30 |
83 |
0.3 |
|
8-804-16 |
5/8 |
5 |
27 |
19 |
60 |
16 |
38 |
106 |
0.6 |
|
8-804-19 |
3/4 |
7 |
33 |
22 |
71 |
19 |
46 |
126 |
0.9 |
|
8-804-22 |
7/8 |
9.5 |
38 |
26 |
87 |
22 |
53 |
148 |
1.5 |
|
8-804-26 |
1 |
12.5 |
44 |
28 |
95 |
26 |
60 |
166 |
2.2 |
|
8-804-28 |
1-1/8 |
15 |
46 |
32 |
108 |
28 |
68 |
190 |
3.0 |
|
8-804-32 |
1-1/4 |
18 |
52 |
36 |
119 |
32 |
76 |
210 |
4.2 |
|
8-804-36 |
1-3/8 |
21 |
57 |
38 |
133 |
36 |
84 |
232 |
5.7 | |
