ltem NO. |
Nominal
Size |
Working
Load Limit |

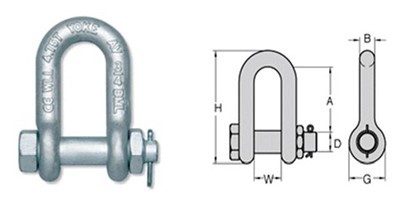

Dimensions(inch) |
N.W. |
|
inch |
tonnes* |
B |
D |
W |
A |
G |
H |
Kg |
|
8-835-08 |
5/16 |
0.75 |
8 |
9.5 |
13 |
31 |
19 |
52 |
0.1 |
|
8-835-10 |
3/8 |
1 |
10 |
11 |
16 |
36 |
23 |
63 |
0.1 |
|
8-835-11 |
7/16 |
1.5 |
11 |
13 |
19 |
43 |
27 |
74 |
0.2 |
|
8-835-13 |
1/2 |
2 |
13 |
16 |
20 |
47 |
30 |
83 |
0.3 |
|
8-835-16 |
5/8 |
3.25 |
16 |
19 |
27 |
60 |
38 |
106 |
0.6 |
|
8-835-19 |
3/4 |
4.75 |
19 |
22 |
33 |
71 |
46 |
126 |
1.0 |
|
8-835-22 |
7/8 |
6.5 |
22 |
26 |
38 |
87 |
53 |
148 |
1.6 |
|
8-835-26 |
1 |
8.5 |
26 |
28 |
44 |
95 |
60 |
166 |
2.4 |
|
8-835-28 |
1-1/8 |
9.5 |
28 |
32 |
46 |
108 |
68 |
190 |
3.2 | ,
|
8-835-32 |
1-1/4 |
12 |
32 |
36 |
52 |
119 |
76 |
210 |
4.5 |
|
8-835-36 |
1-3/8 |
13.5 |
36 |
38 |
57 |
133 |
84 |
232 |
6.1 | |
