ltemNO. |
Sheave
Dia. |
Wire Rope
Size |

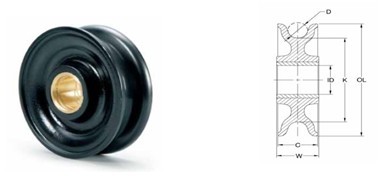

Dimensions(mm) |
N.W |
|
|
inch |
mm |
inch |
C |
D |
ID |
K |
OL |
W |
Kg |
|
8-500-02 |
3 |
8-10 |
5/16~3/8 |
22 |
10 |
19 |
57 |
75 |
24 |
0.6 |
|
8-500-04 |
4.5 |
10-13 |
3/8~1/2 |
35 |
14 |
25 |
77 |
105 |
37 |
1.7 |
|
8-500-08 |
6 |
16-19 |
5/8~3/4 |
42 |
20 |
38 |
111 |
149 |
44 |
2.7 |
|
8-500-0808 |
8 |
16-19 |
5/8~3/4 |
42 |
20 |
38 |
166 |
204 |
44 |
6.6 |
|
8-500-12 |
6 |
19-22 |
3/4~7/8 |
54 |
24 |
51 |
108 |
150 |
59 |
4.2 |
|
8-500-15 |
8 |
19-22 |
3/4~7/8 |
54 |
24 |
51 |
160 |
200 |
59, |
6.3 |
|
8-500-1510 |
10 |
19-22 |
3/4~7/8 |
54 |
24 |
51 |
214 |
254 |
59 |
12.1 |
|
8-500-1512 |
12 |
19-22 |
3/4~7/8 |
54 |
24 |
51 |
265 |
305 |
59 |
16.3 |
|
8-500-20 |
8 |
25-29 |
1~11/8 |
60 |
31 |
57 |
150 |
200 |
63 |
7.0 |
|
8-500-2010 |
10 |
25-29 |
1~11/8 |
60 |
31 |
57 |
204 |
254 |
63 |
10.9 |
|
8-500-2012 |
12 |
25-29 |
1~11/8 |
60 |
31 |
57 |
255 |
305 |
63 |
15.2 | |
