Item No. |
Working
Load
Limit |
Torque
In
ft. Lbs |
Bolt Size |

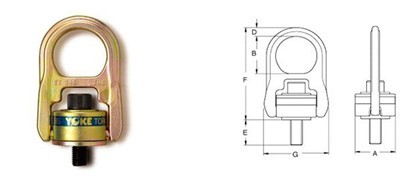

Dimensions (inch) |
N.W |
|
E |
A |
B |
D |
F |
G |
Lbs |
|
Lbs* |
|
8-204-004 |
800 |
7 |
5/16-18×2 |
0.68 |
1.57 |
1.61 |
0.35 |
4.02 |
2.56 |
0.9 |
|
|
8-204-005 |
1000 |
12 |
3/8-16×2 |
0.68 |
1.57 |
1.61 |
0.35 |
4.02 |
2.56 |
0.9 |
|
|
8-204-010 |
2500 |
28 |
1/2-13×2.5 |
0.69 |
2.56 |
2.32 |
0.59 |
6.26 |
4.13 |
3.7 |
|
|
8-204-010L |
2500 |
28 |
1/2-13×3.0 |
1.19 |
2.56 |
2.32 |
0.59 |
6.26 |
4.13 |
3.7 |
|
|
8-204-019 |
4000 |
60 |
5/8-11×2.5 |
0.69 |
2.56 |
2.32 |
0.59 |
6.26 |
4.13 |
4.0 |
|
|
8-204-019L |
4000 |
60 |
5/8-11×3.25 |
1.14 |
2.56 |
2.32 |
0.59 |
6.26 |
4.13 |
4.0 |
|
|
8-204-021 |
5000 |
100 |
3/4-10×2.75 |
0.94 |
2.56 |
2.32 |
0.59 |
6.26 |
4.13 |
4.0 |
|
|
8-204-021L |
5000 |
100 |
3/4-10×3.25 |
1.44 |
2.56 |
2.32 |
0.59 |
6.26 |
4.13 |
4.2 |
|
|
8-204-030 |
7000 |
100 |
3/4-10×3.0 |
0.83 |
3.35 |
2.87 |
0.87 |
8.03 |
5.28 |
9.0 |
|
|
8-204-030L |
7000 |
100 |
3/4-10×3.75 |
1.58 |
3.35 |
2.87 |
0.87 |
8.03 |
5.28 |
9.5 |
|
8-204-042 |
8000 |
160 |
7/8-9×3.5 |
1.33 |
3.35 |
2.87 |
0.87 |
8.03 |
5.28 |
9.3 |
|
|
8-204-042L |
8000 |
160 |
7/8-9×4.25 |
2.08 |
3.35 |
2.87 |
0.87 |
8.03 |
5.28 |
9.7 |
|
|
8-204-045 |
10000 |
230 |
1-8×3.51 |
1.33 |
3.35 |
2.87 |
0.87 |
8.03 |
5.28 |
9.5 |
|
|
8-204-045L |
10000 |
230 |
1-8×4.5 |
2.33 |
3.35 |
2.87 |
0.87 |
8.03 |
5.28 |
9.7 |
|
|
8-204-070 |
15000 |
470 |
1-1/4-7×4.5 |
2.22 |
3.95 |
3.15 |
1.00 |
8.58 |
6.30 |
14.8 |
|
|
8-204-125 |
24000 |
800 |
1-1/2-6×6.5 |
3.15 |
4.72 |
4.29 |
1.38 |
12.09 |
8.66 |
36.4 |
|
|
8-204-135 |
30000 |
1100 |
2-4.5×6.5 |
3.15 |
4.72 |
4.29 |
1.38 |
12.09 |
8.66 |
38.6, |
| |
|
| |
