Item No. |
Working
Load
Limit
tonnes * |
Torque
In
Nm |
Bolt Size |

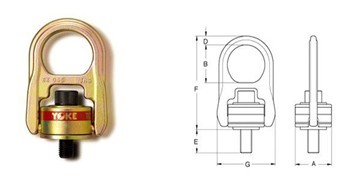

Dimensions (mm) |
N.W. |
|
E |
A |
B |
D |
F |
G |
Kg |
|
5:1 |
4:1 |
|
|
8-203-004 |
0.04 |
0.50 |
10 |
M8 ×1.25×50 |
16.5 |
40 |
41 |
9 |
102 |
65 |
0.4 |
|
|
8-203-005 |
0.45 |
0.55 |
16 |
M10×1.50×45 |
11.5 |
40 |
41 |
9 |
102 |
65 |
0.4 |
|
|
8-203-005L |
0.45 |
0.55 |
16 |
M10×1.50×60 |
26.5 |
40 |
41 |
9 |
102 |
65 |
0.5 |
|
|
8-203-010 |
1.05 |
1.30 |
38 |
M12×1.75×60 |
14.0 |
65 |
64 |
15 |
158 |
105 |
1.7 |
|
|
8-203-010L |
1.05 |
1.30 |
38 |
M12×1.75×75 |
29.0 |
65 |
64 |
15 |
158 |
105 |
2.1 |
|
|
8-203-019 |
1.9 |
2.40 |
81 |
M16×2.00×65 |
19.0 |
65 |
64 |
15 |
158 |
105 |
1.7 |
|
|
8-203-019L |
1.9 |
2.40 |
81 |
M16×2.00×80 |
34.0 |
65 |
64 |
15 |
158 |
105 |
1.8 |
|
|
8-203-021 |
2.15 |
2.70 |
136 |
M20×2.50×70 |
24.0 |
65 |
64 |
15 |
158 |
105 |
1.8 |
|
|
8-203-021L |
2.15 |
2.70 |
136 |
M20×2.50×90× |
44.0 |
65 |
64 |
15 |
158 |
105 |
1.8 |
|
|
8-203-030 |
3.00 |
3.75 |
136 |
M20×2.50×80 |
25.0 |
85 |
79 |
19 |
204 |
134 |
4.1 |
|
|
8-203-030L |
3.00 |
3.75 |
136 |
M20×2.50×100 |
45.0 |
85 |
79 |
19 |
204 |
134 |
4.2 |
|
8-203-042 |
4.20 |
5.25 |
312 |
M24×3.00×80 |
25.0 |
85 |
79 |
19 |
204 |
134 |
4.2 |
|
|
8-203-042L |
4.20 |
5.25 |
312 |
M24×3.00×105 |
50.0 |
85 |
79 |
19 |
204 |
134 |
4.3 |
| |
