Item No. |
Wire
Line
Size |
Working
Load
Limit |

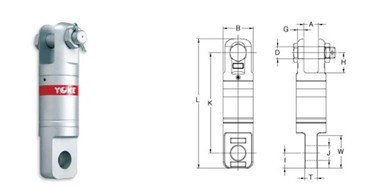

Dimensions (mm) |
N.W. |
|
mm |
tons* |
B |
K |
L |
A |
G |
D |
H |
T |
J |
I |
W |
Kg |
|
8-304-0075 |
6 |
0.75 |
32 |
103 |
134 |
15 |
6 |
10 |
22 |
12 |
19 |
18 |
37 |
0.5 |
|
8-304-015 |
10 |
1.5 |
40 |
115 |
156 |
18 |
7 |
13 |
26 |
15 |
23 |
22 |
43 |
1.1 |
|
8-304-03 |
13 |
3 |
51 |
158 |
211 |
23 |
10 |
19 |
32 |
20 |
27 |
28 |
51 |
2.2 |
|
8-304-05 |
16 |
5 |
64 |
205 |
269 |
32 |
14 |
22 |
37 |
26 |
33 |
33 |
59 |
4.4 |
|
8-304-085 |
19 |
8.5 |
76 |
250 |
322 |
40 |
14 |
30 |
54 |
32 |
37 |
38 |
82 |
7.4 |
|
8-304-10 |
22 |
10 |
102 |
312 |
412 |
42 |
25 |
38 |
54 |
42 |
44 |
52 |
90 |
17.5 |
|
8-304-15 |
25 |
15 |
108 |
317 |
434 |
48 |
25 |
38 |
57 |
49 |
54 |
64 |
110 |
21.5 |
|
8-304-25 |
32 |
25 |
132 |
390 |
524 |
62 |
30 |
51 |
70 |
60 |
66 |
70 |
130 |
39.7 | |
