货号 |
钢丝绳尺寸 |

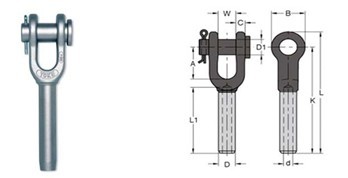

主要技术参数（毫米） |
最大旋转尺寸 |
净重 |
|
涂色 |
镀锌 |
毫米 |
L |
D |
B |
D1 |
d |
L1 |
W |
K |
C |
A |
毫米 |
千克 |
|
8-731-06 |
8-731-G06 |
6-7 |
122 |
13 |
35 |
18 |
7.0 |
55 |
17 |
102 |
9 |
38 |
12 |
0.2 |
|
8-731-08 |
8-731-G08 |
8 |
159 |
20 |
42 |
21 |
9.0 |
80 |
20 |
135 |
12 |
45 |
18 |
0.5 |
|
8-731-10 |
8-731-G10 |
9-10 |
159 |
20 |
42 |
21 |
10.0 |
80 |
20 |
135 |
12 |
45 |
18 |
0.6 |
|
8-731-11 |
8-731-G11 |
11-12 |
199 |
25 |
50 |
25 |
12.0 |
110 |
25 |
174 |
14 |
50 |
23 |
1.0 |
|
8-731-13 |
8-731-G13 |
13 |
199 |
25 |
50 |
25 |
14.0 |
110 |
25 |
174 |
14 |
50 |
23 |
0.9 |
|
8-731-14 |
8-731-G14 |
14-15 |
240 |
32 |
60 |
30 |
16.0 |
135 |
31 |
210 |
17 |
70 |
30 |
2.1 |
|
8-731-16 |
8-731-G16 |
16 |
240 |
32 |
60 |
30 |
17.0 |
135 |
31 |
210 |
17 |
57 |
30 |
2.0 |
|
8-731-19 |
8-731-G19 |
18-20 |
295 |
39 |
70 |
35 |
21.0 |
161 |
38 |
256 |
20 |
70 |
36 |
3.6 |
|
8-731-22 |
8-731-G22 |
22-23 |
340 |
43 |
80 |
41 |
24.0 |
189 |
45 |
300 |
24 |
82 |
40 |
5.2 |
|
8-731-26 |
8-731-G26 |
24-25 |
395 |
50 |
100 |
51 |
27.0 |
216 |
50 |
345 |
26 |
98 |
46 |
8.1 |
|
8-731-28 |
8-731-G28 |
28 |
442 |
57 |
103 |
57 |
30.0 |
238 |
57 |
383 |
30 |
108 |
52 |
11.5 |
|
8-731-32 |
8-731-G32 |
32 |
484 |
64 |
113 |
64 |
34.0 |
269 |
63 |
419 |
34 |
120 |
59 |
16.3 |
|
8-731-36 |
8-731-G36 |
35-36 |
534 |
71 |
127 |
64 |
37.0 |
297 |
64 |
463 |
35 |
132 |
65 |
19.9 |
|
<, P style="PADDING-BOTTOM: 0px; LINE-HEIGHT: 200%; MARGIN-TOP: 0px; PADDING-LEFT: 0px; PADDING-RIGHT: 0px; MARGIN-BOTTOM: 0px; PADDING-TOP: 0px" align=center>8-731-38 |
8-731-G38 |
38 |
581 |
78 |
140 |
70 |
41.0 |
315 |
76 |
502 |
43 |
146 |
72 |
26.5 |
|
8-731-45 |
8-731-G45 |
44-45 |
674 |
86 |
170 |
89 |
47.2 |
378 |
89 |
584 |
54 |
171 |
78 |
40.3 |
|
8-731-50 |
8-731-G50 |
48-51 |
798 |
100 |
203 |
95 |
54.1 |
431 |
101 |
682 |
60 |
203 |
91 |
66.4 |
|
|
| |
