货号 |
钢丝绳尺寸 |

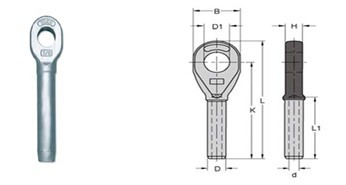

主要技术参数（毫米） |
最大旋转尺寸 |
净重 |
|
涂色 |
镀锌 |
毫米 |
L |
D |
B |
D1 |
d |
L1 |
H |
K |
毫米 |
千克 |
|
8-732-06 |
8-732-G06 |
6-7 |
110 |
13 |
35 |
19 |
7.0 |
54 |
13 |
89 |
12 |
0.2 |
|
8-732-08 |
8-732-G08 |
8 |
140 |
20 |
41 |
22 |
9.0 |
80 |
17 |
114 |
18 |
0.3 |
|
8-732-10 |
8-732-G10 |
9-10 |
140 |
20 |
41 |
22 |
11.0 |
80 |
17 |
114 |
18 |
0.3 |
|
8-732-11 |
8-732-G11 |
11-12 |
176 |
25 |
51 |
27 |
12.0 |
108 |
22 |
146 |
23 |
0.6 |
|
8-732-13 |
8-732-G13 |
13 |
176 |
25 |
51 |
27 |
14.0 |
108 |
22 |
146 |
23 |
0.6 |
|
8-732-14 |
8-732-G14 |
14-15 |
221 |
32 |
61 |
32 |
16.0 |
135 |
29 |
185 |
30 |
1.3 |
|
8-732-16 |
8-732-G16 |
16 |
221 |
32 |
61 |
32 |
17.0 |
135 |
29 |
185 |
30 |
1.3 |
|
8-732-19 |
8-732-G19 |
18-20 |
259 |
39 |
73 |
36 |
21.0 |
162 |
33 |
217 |
36 |
2.3 |
|
8-732-22 |
8-732-G22 |
22-23 |
304 |
43 |
79 |
43 |
24.0 |
189 |
38 |
258 |
39 |
3.1 |
|
8-732-26 |
8-732-G26 |
24-25 |
342 |
50 |
92 |
52 |
27.0 |
216 |
45 |
293 |
46 |
4.7 |
|
8-732-28 |
8-732-G28 |
28 |
382 |
57 |
102 |
59 |
30.0 |
243 |
51 |
323 |
52 |
6.7 |
|
8-732-32 |
8-732-G32 |
32 |
431 |
64 |
114 |
65 |
34.0 |
270 |
57 |
364 |
58 |
9.8 |
|
8-732-36 |
8-732-G36 |
35-36 |
475 |
71 |
127 |
65 |
37.0 |
297 |
57 |
402 |
65 |
13.0 |
|
8-732-38 |
8-732-G38 |
38 |
511 |
78 |
140 |
71 |
41.0 |
323 |
64 |
432 |
71 |
17.3 |
|
8-732-45 |
8-732-G45 |
44-45 |
598 |
86 |
159 |
90 |
47.2 |
378 |
76 |
508 |
78 |
27.8 |
|
8-732-50 |
8-732-G50 |
48-51 |
702 |
100 |
184 |
97 |
54.1 |
432 |
83 |
584 |
90 |
40.5 | |
|
| |
