货号 |
钢丝绳直径 |
链结构直径 |

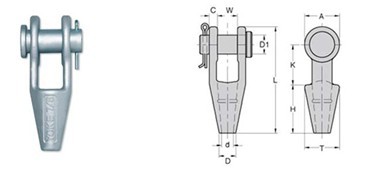

主要技术参数（毫米） |
净重 |
|
涂色 |
镀锌 |
毫米 |
毫米 |
L |
W |
D1 |
d |
D |
T |
H |
K |
A |
C |
千克 |
|
8-734-06 |
8-734-G06 |
6-7 |
-- |
115 |
23 |
17 |
8 |
18 |
39 |
57 |
40 |
22 |
9 |
0.5 |
|
8-734-10 |
8-734-G10 |
8-10 |
-- |
123 |
21 |
20 |
13 |
21 |
44 |
57 |
45 |
38 |
11 |
0.6 |
|
8-734-13 |
8-734-G13 |
11-13 |
-- |
142 |
25 |
25 |
15 |
25 |
50 |
63 |
54 |
48 |
13 |
1.1 |
|
8-734-16 |
8-734-G16 |
14-16 |
13 |
172 |
32 |
30 |
18 |
29 |
57 |
76 |
64 |
58 |
14 |
1.7 |
|
8-734-19 |
8-734-G19 |
18-20 |
14-16 |
202 |
38 |
35 |
22 |
32 |
67 |
92 |
76 |
67 |
16 |
2.6 |
|
8-734-22 |
8-734-G22 |
22-23 |
18-20 |
235 |
45 |
41 |
24 |
38 |
85 |
102 |
89 |
80 |
20 |
4.7 |
|
8-734-26 |
8-734-G26 |
24-26 |
22-23 |
268 |
52 |
51 |
29 |
44 |
95 |
114 |
102 |
96 |
23 |
7.4 |
|
8-734-28 |
8-734-G28 |
28-30 |
24-25 |
300 |
57 |
56 |
32 |
51 |
105 |
127 |
117 |
105 |
25 |
10.0 |
|
8-734-36 |
8-734-G36 |
32-35 |
26-28 |
335 |
64 |
62 |
38 |
57 |
120 |
140 |
127 |
121 |
29 |
14.9 |
|
8-734-38 |
8-734-G38 |
36-39 |
30-32 |
384 |
76 |
70 |
41 |
70 |
133 |
152 |
152 |
137 |
30 |
20.8 | |
|
| |
