Ltem NO. |
Nominal
Size |
Working
Load Limit |

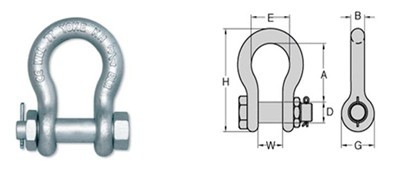

Dimensions(inch) |
N.W. |
|
Inch |
tonnes* |
B |
D |
W |
A |
E |
G |
H |
Lbs |
|
8-807-08 |
5/16 |
1.2 |
0.31 |
0.37 |
0.47 |
1.22 |
0.83 |
0.75 |
2.13 |
0.2 |
|
8-807-10 |
3/8 |
2 |
0.39 |
0.43 |
0.63 |
1.42 |
1.02 |
0.91 |
2.56 |
0.2 |
|
8-807-11 |
7/16 |
2.6 |
0.43 |
0.51 |
0.75 |
1.70 |
1.18 |
1.06 |
2.95 |
0.4 |
|
8-807-13 |
1/2 |
3.4 |
0.52 |
0.63 |
0.79 |
1.85 |
1.30 |
1.18 |
3.34 |
0.7 |
|
8-807-16 |
5/8 |
5 |
0.63 |
0.75 |
1.06 |
2.40 |
1.77 |
1.53 |
4.21 |
1.3 |
|
8-807-19 |
3/4 |
7 |
0.75 |
0.87 |
1.30 |
2.83 |
1.97 |
1.81 |
4.96 |
2.4 |
|
8-807-22 |
7/8 |
9.5 |
0.87 |
1.02 |
1.50 |
3.39 |
2.28 |
2.09 |
5.82 |
3.5 |
|
8-807-26 |
1 |
12.5 |
1.02 |
1.10 |
1.73 |
3.78 |
2.68 |
2.36 |
6.53 |
5.7 |
|
8-807-28 |
1-1/8 |
15 |
1.10 |
1.26 |
1.81 |
4.37 |
2.91 |
2.68 |
7.48 |
7.5 |
|
8-807-32 |
1-1/4 |
18 |
1.26 |
1.42 |
2.12 |
4.76 |
3.22 |
2.99 |
8.26 |
9.9 |
|
8-807-36 |
1-3/8 |
21 |
1.42 |
1.50 |
2.32 |
5.28 |
3.62 |
3.31 |
9.13 |
13.2 |
|
Ltem NO. |
Nominal
Size |
Working
Load Limit |
Dimensions(mm) |
N.W. |
|
mm |
tonnes* |
B |
D |
W |
A |
E |
G |
H |
Kg |
|
8-807-08 |
8 |
1.2 |
8 |
9.5 |
12 |
21 |
21 |
19 |
54 |
0.1 |
|
8-807-10 |
10 |
2 |
10 |
11 |
16 |
26 |
26 |
23 |
65 |
0.1 |
|
8-807-11 |
11 |
2.6 |
11 |
13 |
19 |
30 |
30 |
27 |
75 |
0.2 |
|
8-807-13 |
13 |
3.4 |
13 |
16 |
20 |
33 |
33 |
30 |
85 |
0.3 |
|
8-807-16 |
16 |
5 |
16 |
19 |
27 |
45 |
45 |
39 |
107 |
0.6 |
|
8-807-19 |
19 |
7 |
19 |
22 |
33 |
50 |
50 |
46 |
126 |
1.0 |
|
8-807-22 |
22 |
9.5 |
22 |
26 |
38 |
58 |
58 |
53 |
148 |
1.5 |
|
8-807-26 |
26 |
12.5 |
26 |
28 |
44 |
68 |
68 |
60 |
166 |
2.3 |
|
8-807-28 |
28 |
15 |
28 |
32 |
46 |
74 |
74 |
68 |
19 |
3.2 |
|
8-807-32 |
32 |
18 |
32 |
36 |
54 |
82 |
82 |
76 |
210 |
4.4 |
|
8-807-36 |
36 |
21 |
36 |
38 |
59 |
92 |
92 |
84 |
232 |
6.0 | |
