Ltem NO. |
Nominal
Size |
Working
Load Limit |

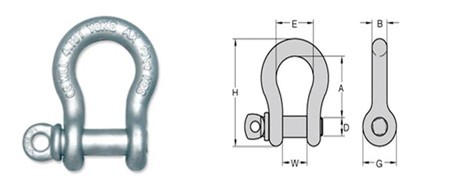

Dimensions(inch) |
N.W. |
|
Inch |
tonnes* |
B |
D |
W |
A |
E |
G |
H |
Lbs |
|
8-837-08 |
5/16 |
0.75 |
0.31 |
0.37 |
0.47 |
1.22 |
0.82 |
0.75 |
2.13 |
0.2 |
|
8-837-10 |
3/8 |
1 |
0.39 |
0.43 |
0.63 |
1.42 |
1.02 |
0.91 |
2.56 |
0.2 |
|
8-837-11 |
7/16 |
1.5 |
0.43 |
0.51 |
0.75 |
1.70 |
1.18 |
1.06 |
2.95 |
0.4 |
|
8-837-13 |
1/2 |
2 |
0.52 |
0.63 |
0.79 |
1.85 |
1.30 |
1.18 |
3.34 |
0.7 |
|
8-837-16 |
5/8 |
3.25 |
0.63 |
0.75 |
1.06 |
2.40 |
1.70 |
1.50 |
4.17 |
1.3 |
|
8-837-19 |
3/4 |
4.75 |
0.75 |
0.87 |
1.30 |
2.83 |
1.96 |
1.81 |
5.04 |
2.4 |
|
8-837-22 |
7/8 |
6.5 |
0.87 |
1.02 |
1.50 |
3.39 |
2.28 |
2.08 |
5.91 |
3.5 |
|
8-837-26 |
1 |
8.5 |
1.02 |
1.10 |
1.73 |
3.78 |
2.68 |
2.67 |
6.57 |
5.7 |
|
8-837-28 |
1-1/8 |
9.5 |
1.10 |
1.26 |
1.81 |
4.37 |
2.91 |
2.68 |
7.52 |
7.1 |
|
8-837-32 |
1-1/4 |
12 |
1.26 |
1.42 |
2.12 |
4.76 |
3.30 |
2.99 |
8.07 |
9.9 |
|
8-837-36 |
1-3/8 |
13.5 |
1.42 |
1.50 |
2.32 |
5.28 |
3.62 |
3.30 |
9.13 |
13.9 |
|
8-837-38 |
1-1/2 |
17 |
1.50 |
1.77 |
2.36 |
5.57 |
3.90 |
3.62 |
10.00 |
17.4 |
|
8-837-45 |
1-3/4 |
25 |
1.85 |
2.00 |
2.87 |
7.00 |
5.00 |
4.17 |
12.32 |
28.6 |
|
8-837-50 |
2 |
35 |
2.09 |
2.24 |
3.27 |
7.76 |
5.75 |
4.80 |
13.66 |
46.2 |
|
