Ltem NO. |
Nominal
Size |
Working
LoadLimit |

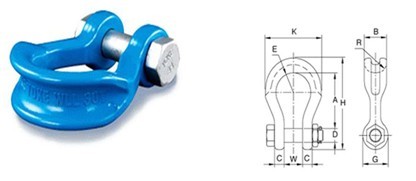

Dimensions(mm) |
N.W. |
|
mm |
tonnes* |
A |
B |
C |
D |
E |
G |
H |
K |
R |
W |
Kg |
|
8-809-19 |
3/4 |
7 |
91 |
41 |
18 |
22 |
32 |
46 |
150 |
104 |
32 |
33 |
1.7 |
|
8-809-26 |
1 |
12.5 |
118 |
54 |
23 |
29 |
41 |
61 |
194 |
140 |
35 |
44 |
3.8 |
|
8-809-32 |
1-1/4 |
18 |
148 |
64 |
30 |
36 |
51 |
68 |
238 |
172 |
38 |
54 |
6.8 |
|
8-809-38 |
1-1/2 |
30 |
176 |
80 |
35 |
45 |
64 |
89 |
289 |
216 |
45 |
60 |
12.3 | |
